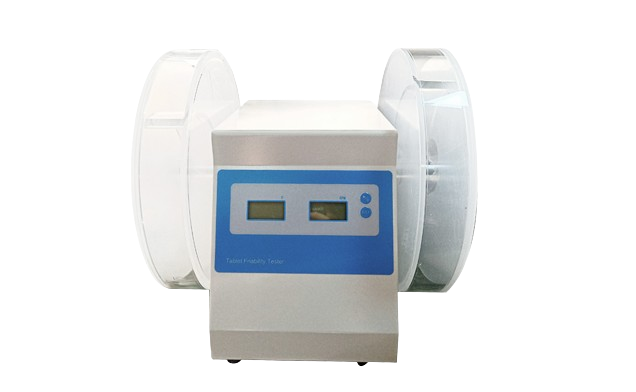

Tablet Friability Tester-3

CS series of instruments are used for detecting friability/ abrasion of the tablet.

Applicable standards:
National standard( Chinese Codex ) /2015
Corporate standard(Dissolution tester )Q/12XQ0189-2010

Features:
Two drums run synchronously. Auto stop at timing point.
The drum is made of high-quality hyaline acryl.
The revolution of the drum can be preset at any time, either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Cylinder number: 2
Cylinder radius: Φ286mm
Cylinder depth: 39mm
Tablet fall height: 156mm
Rotation speed: 25rpm
Rotation Speed accuracy: ±1rpm
Rotation count: (10~900)r
Rotation count accuracy : ±1r
Power: 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W
Dimension; (370×300×340)mm3
