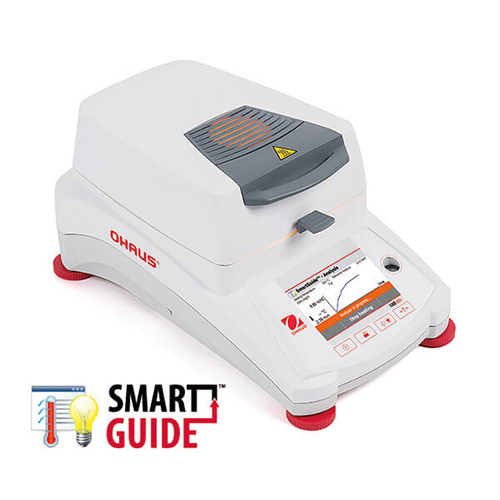

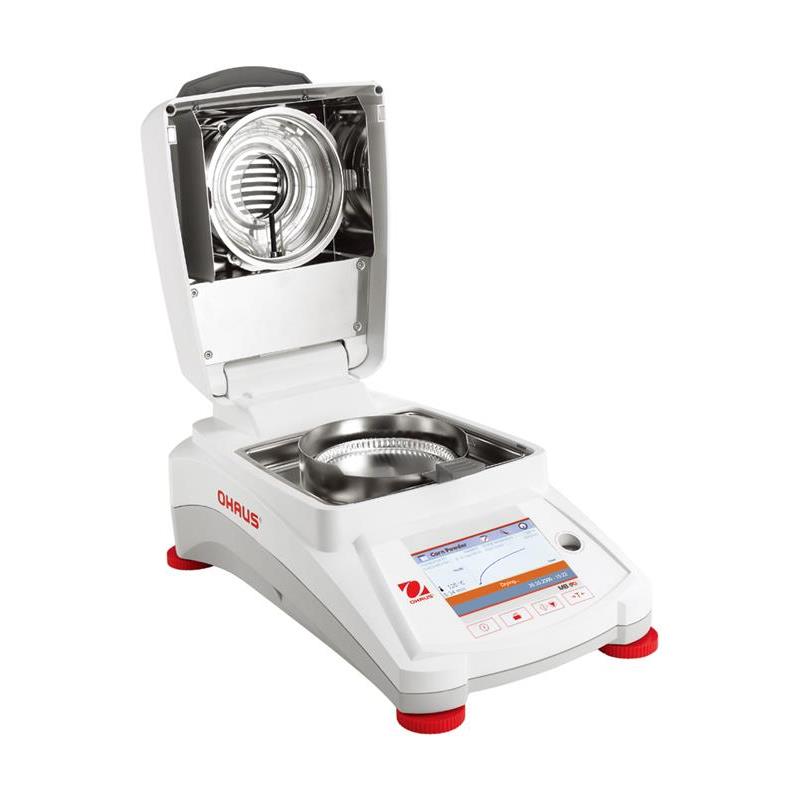

Digital Moisture Analyzer

Digital Moisture Analyzer

Technical Specification of Digital Moisture Analyzer:
Applications: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display: 4.3″ TFT color touchscreen display
Operation: Power cord (included)
Communication: RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction: Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features: Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 14 operational languages
Maximum Capacity: 90 g
Sample Size: 0.5 g – 90 g
Shut-Off Criteria: Manual; Timed; Auto
Readability Moisture Content:1 mg/0.01%
Temperature Range: 40 °C – 200 °C
Moisture Range 0 % – 100 %
Pan Size: 90 mm
Test Library:2
Heater Type: Halogen Lamp
Communication: USB host x 2; USB device; RS232
Display: Full-Color 4.3 in Touchscreen WQVGA
Heating Profiles: Standard; Fast
In-use cove: Included
Operating Range (Temp.) 10 °C – 40 °C
Power 230V
Units of Measurement Gram; %MC; %RG; %DC
Working Environment 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing)
Net Weight:11.53 lb (5.23 kg)
Dimensions (HxLxW) :180 mm x 355 mm x 211 mm
